SMILE-B3
3 kW
2.9 - 17.2 kWh
SMILE-B3 is suitable for any pre-existing solar system with no current solar battery attached, which can pair with up to six 2.9kWh batteries, expanding your storage capacity to 17.2kWh.
FEATURES
-
Retrofit
-
AC-Coupling
-
Built-in Battery
-
Modular Design
-
Easy Installation
-
24/7 Monitoring
SPECS
-
-
Max. AC Output Power
3 kW
-
Capacity Range
2.9 - 17.2 kWh
-
Max. Charging/Discharging Current
60 A
-
Depth of Discharge (DoD)
96%
-
Dimensions (W x D x H)
610 x 219 x 650 mm
-
Operating Temperature Range
-10 °C ~ 50 °C*
-
IP Protection
IP65 (Outdoor) / IP21 (Indoor)
-
Warranty
5 Years Product Warranty
10 Years Battery Performance Warranty
-

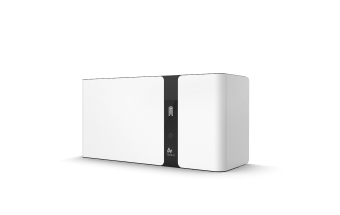

BATTERY MODULE
Safe and reliable (LFP ONLY) and high compatibility.
Lego-style modular design, easy installation and expansion to meet different requirements.
